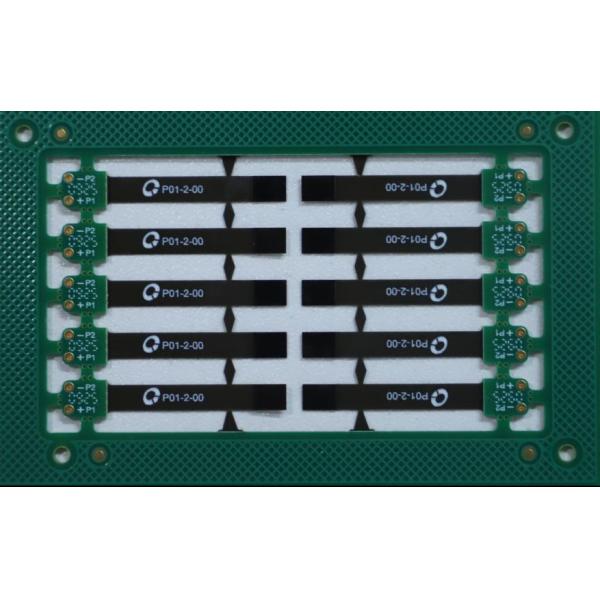

Double-sided soft and hard composite board PCB

Advantages of Industrial Control PCB:

• High reliability and stability
• Adapt to harsh environments
• Improve the system's integration degree
• Good thermal management capability
• High temperature resistance and chemical resistance
• Anti-electromagnetic interference (EMI)

product Description:

Double-sided soft and hard composite board PCB refers to the printed circuit board used in industrial control systems. It is a key component of industrial automation equipment, machines, controllers, etc., carrying functions such as electrical signals, control instructions, and power transmission. The design requirements of industrial control PCB must be very strict and must have high reliability, durability and the ability to adapt to complex environments. Therefore, it has its own specific requirements in terms of material selection, design, manufacturing process, etc.

Manufacturing process:

• Material selection: Industrial control PCBs typically use high-performance base materials, such as high-temperature resistant materials, glass fiber reinforced epoxy resin, etc., ensure their stability in high-temperature, high-humidity, and chemical corrosion environments.
• Circuit design and layout: In industrial control PCB design, it is necessary to consider multiple aspects such as power management, signal integrity, and anti-electagnetic interference. The circuit layout should be planned reasonably, and reliable electrical connections should be ensured.
• Multilayer design and stacking technology: Industrial control PCBs often adopt a multilayer structure, stacking multiple circuit layers together to ensure high-density wiring reduce signal interference and space occupation.
• Thermal management design: To avoid overheating of the circuit board during high-power operation, industrial control PCBs often have special heat dissipation measures designed such as heat pipes, heat sinks, and heat-conducting materials, to ensure that heat can be dissipated in a timely manner.
• Protective Coating and Encapsulation: To enhance the water resistance, dust resistance, and corrosion resistance of industrial control PCBs, a protective coating ( as polyurethane, epoxy resin, etc.) is often applied or special encapsulation techniques are used.
• Testing and verification: In the production process of industrial control PCB, it must undergo strict electrical testing, functional verification and environmental adaptability testing to ensure the reliability and stability of the product.

Dongguan Xingqiang Circuit Board Co., Ltd. was established in 1995 and is a professional circuit boardfactory that manufactures single-sided and double-sided PCBs, multi-layer PCBs, and Rigid Flex PCBs.

The company has two production bases in Dongguan andJiangxi, covering an area of 205000 square meters with a comprehensive monthly production capacity of 200000 square meters. The company's products are widely used in computer peripherals, communication, power supply, medical, automotive electronics, household appliances and other fields.

Our company advocate integrity, win-win and pioneering business philosophy, and put into practice the work style of "pragmatism, hard work and responsibility" to create a good corporate environment. Based on a new management model, advanced technology and equipment and good product quality, We always adhere to the corporate spirit of customer first and people-oriented.
